ONLINE OIL CONDITION MONITORING

The world's most advanced and flexible real-time oil quality condition monitoring sensor

Uses FSH™ technology to detect and measure any oil contamination or wear, with precise oil end of life

Can detect the slightest change in Oil condition, even +/-0.5% change, for any oil type, in any application

Oil Condition output direct to Displays and PLC systems, or IIOT enabled for condition Anytime Anywhere over the internet

FULL SPECTRUM HOLISTIC FSH™

Detects all wear and contamination: water, acid, fuel, viscosity, carbon, wear particles etc

REAL-TIME

Continuously analyses oil condition and reports oil condition every two seconds.

ABSOLUTE ACCURACY

Oil quality change sensitivity detection of 0.01% (100ppm)

with accuracy margin of +/-0.5%.

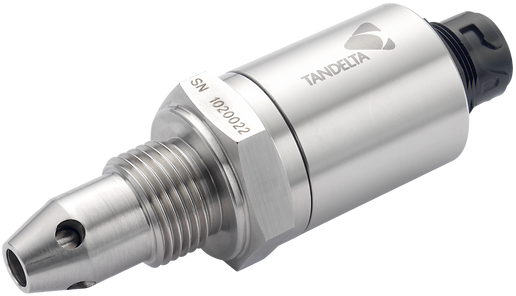

OIL  QUALITY  SENSOR

PARAMETERS MONITORED

Tan Delta Number TDN

Oil Temperature

OIL TYPE

All mineral, semi-synthetic or synthetic oils, including fuels (diesel & biodiesel)

OUTPUTS

Digital: RS485, CANbus

Analog: 4-20mA

Protocols: Modbus, JI939

Sensor  Output




Direct

PLC

Display

PROFESSIONAL

IIOT Gateway


TD ONLINE software

Oil Condition

Anytime Anywhere

Configuration  Options


Display  EXPRESS

CONFIGURABLE OIL QUALITY ALERTS - Configurable traffic light alert system provides simple visual oil quality reference.



DATA LOGGER - Continuously logs up to 800,000 records of oil quality data which can be downloaded for analysis.



ESSENTIAL INFORMATION - Displays oil quality, temperature and rate of change in real time.



ROBUST & RELIABLE - Proven around the world for use in even the most extreme industrial and commercial applications, IP67



BLUETOOTH CONNECTIVITY - Stored data can be easily downloaded and sent wherever needed.

Display  PROFESSIONAL



INFORMATIVE - 6” high resolution, touch screen provides clear display of data.


FLEXIBLE - Network and display data from up to four sensors simultaneously using our Hub or via your exiting CANbus/Infrastructure.

DATA LOGGER - Continuously logs oil quality data which can be downloaded for analysis.


INTUITIVE FUNCTIONALITY - menu system makes it extremely simple to access functionality such as rate of change graphs and alert configurations.

INDUSTRIAL QUALITY - The rugged IP67 rated enclosure with rubber frame and high quality industrial connectors make it reliable and robust.




IIOT Gateway

SYSTEM INTEGRATION - can support 10 sensors simultaneously, with cables of varying lengths to ensure easy installation, integration and operation.


CONNECTS TO TD-ONLINE - a web interface that serves as a data hub and dashboard view of all monitored assets, with alerts. It is similar across desktop/tablet/smart phone views for ease of use.


SIMPLE TO DEPLOY - Allowing quick and simple installation on any piece of equipment whether brand new or being installed as part of a retrofit.


INDUSTRIAL QUALITY - IP67 rated, suitable for installation in any harsh industrial environment.



Mobile Oil Tester MOT

ALL YOU NEED - Everything you need to undertake instant oil analysis in one place.


PORTABLE - The MOT Kit is fully portable - ideal for the workshop and for field maintenance crews.


ROBUST & RUGGED - Housed in a rugged IP67 rated industrial quality case for carrying on site.


INSTANT RESULTS - Instant diagnosis of oil condition, with the ability to store and trend data. Install the supplied CADS software on your windows laptop/PC, connect the Oil Quality Sensor via the configuration cable to your laptop, present sample for instant diagnosis of condition, trend and store oil condition in the CADS software.


FULLY CONFIGURABLE - Suitable for use in any commercial or industrial environment, the MOT Kit allows accurate testing of any oil or fuel oil.



CADS Application

Configuration and Data Software CADS

FLEXIBLE CONFIGURATION - Enables the simple and easy configuration of all products to suit any applications with any oil type.

DATA ANALYSIS - Trend analysis allows you to maximise the benefits of your real-time oil monitoring data.


OIL DATABASE - Comprehensive database of oil configuration profiles for performance optimisation



AUTOMATIC UPDATES - Database & configuration tool updates done automatically via the internet.



WINDOWS COMPATIBLE - Fully compatible with all the supported versions of Windows from Windows 7 up to Windows 10.




PRODUCT PORTFOLIO
